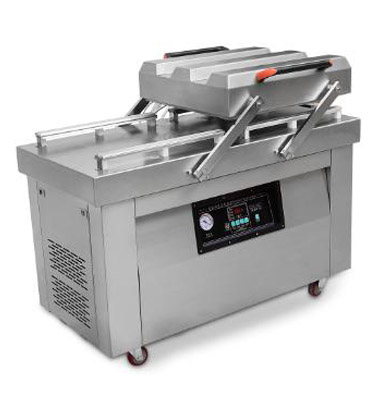

DZ-500/2SA雙室平板真空包裝機
包裝機
2019.11.11
| DZ-500/2SA雙室平板真空包裝機 | |
| DZ-500/2SA DOUBLE CHAMBERS VACUUM PACKAGING MACHINE | |
| 電源電壓(v/Hz)voltage | AC380/50 AC220/50 |
| 真空泵電機功率(W)Motor Power | 2000 |
| 熱封功率(W)Sealing Power | 800 |
| 真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
| 每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 2 |
| 真空室內尺寸(LxWxH)(mm)Chamber Dimension | 550*520*100 |
| 熱封條長度(mm)Sealing Length | 500 |
| 熱封寬度（mm)Sealing Width | 10 |
| 真空泵排氣量(m3/h)Vacuum Pump Rate | 20*2 |
| 真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 201 |
| 外形尺寸（LxWxH)(mm)Dimension | 1200*570*920 |
| 凈重(kg)Net Weight | 170 |
| 兩條封口之間的中心距離(mm)The center distance between two sealing bars | 440 |
產品介紹
| DZ-500/2SA雙室平板真空包裝機 | |
| DZ-500/2SA DOUBLE CHAMBERS VACUUM PACKAGING MACHINE | |
| 電源電壓(v/Hz)voltage | AC380/50 AC220/50 |
| 真空泵電機功率(W)Motor Power | 2000 |
| 熱封功率(W)Sealing Power | 800 |
| 真空室最低絕對壓強(Kpa)Ultimate Vacuum Pressure | 1 |
| 每室熱封條數(pcs)No.of Sealing Bars for Each Chamber | 2 |
| 真空室內尺寸(LxWxH)(mm)Chamber Dimension | 550*520*100 |
| 熱封條長度(mm)Sealing Length | 500 |
| 熱封寬度（mm)Sealing Width | 10 |
| 真空泵排氣量(m3/h)Vacuum Pump Rate | 20*2 |
| 真空室材質Material for Vacuum Chamber | 不銹鋼Stainless steel 201 |
| 外形尺寸（LxWxH)(mm)Dimension | 1200*570*920 |
| 凈重(kg)Net Weight | 170 |
| 兩條封口之間的中心距離(mm)The center distance between two sealing bars | 440 |
